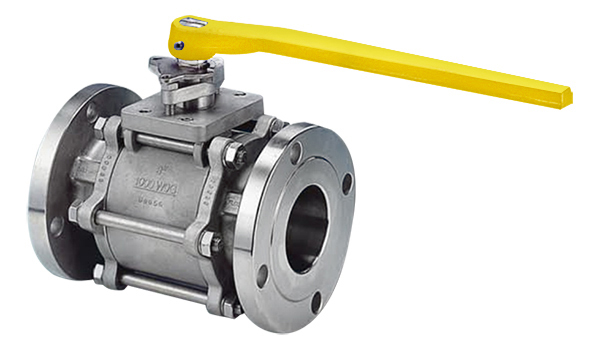

Ball VALVE | 3-PC Flanged Ball Valve |
TPP-WB301F
(FLANGE END)
  • Features
  • Specification
  • BLOW-OUT PROOF STEM
  • ANTI-STATIC DESIGN IS STANDARD

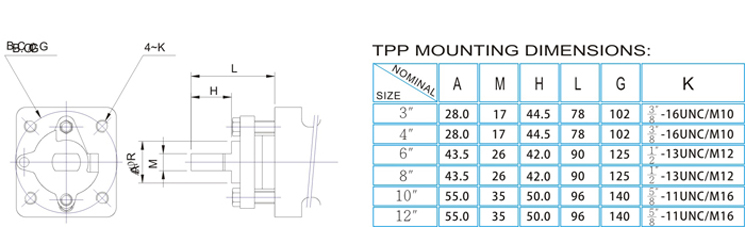

  • ISO 5211 MOUNTING PAD
  • CAVITY FILLER SEAT AS OPTION
  • FLANGE DUIENSIONS: ANSI 816. 50
  • BALL CT-PORT) AS OPTION
  • TEMPERATURE RA􀀼GE: -6010 450'F
  • PRESSURE RATING: 1000 PSI WOG
