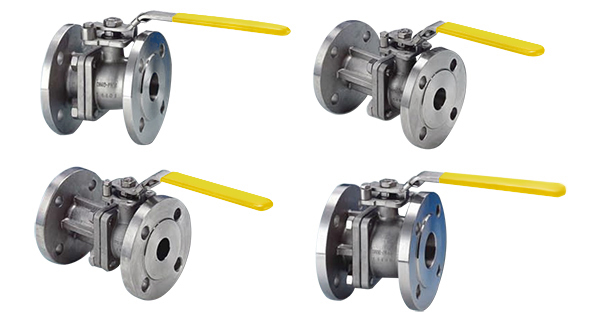

Ball VALVE | 2-PC Flanged Ball Valve |

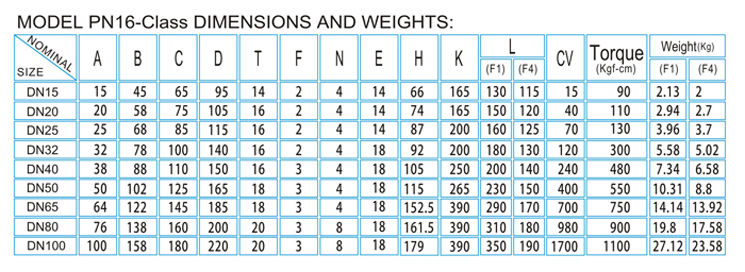

PN16-WB203

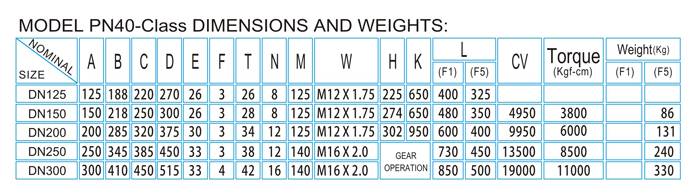

PN40-WB204
  • Features
  • Specification
  • BLOW-OUT PROOF STEM
  • FIRE SAFE DESIGN AS OPTION
  • ANTI-STATIC DESIGN IS STANDARD

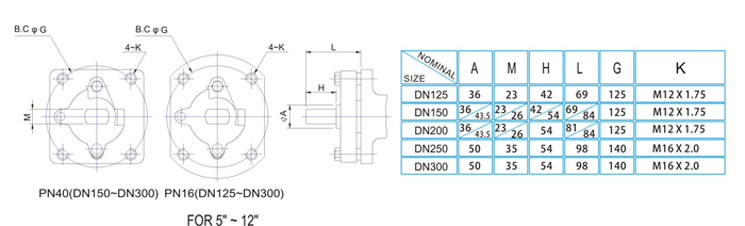

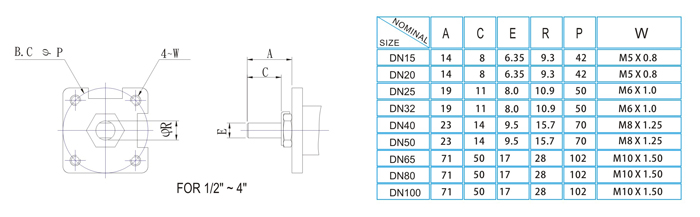

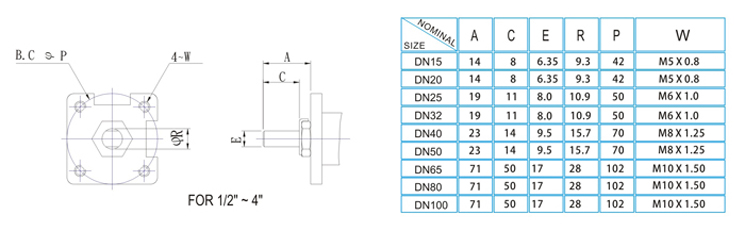

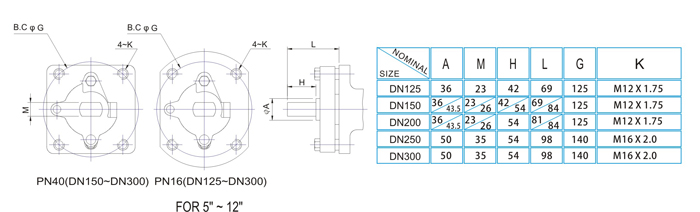

  • ISO 5211 MOUNTING PAD
  • TEMPERATURE RANGE: -60'TO 450-F
  • FACE TO FACE: DIN3202 F4/Fl 0
  • FLANGE DIMENSIONS: DIN2633/DIN2635
  • PRESSURE RATING: PN16/PN40
